Aggregations

A key feature of the Select queries are aggregations. These are supported with:

  • Windows - A window is a range of events, clock or data time. There can be many different types of windows.
  • Aggregate functions - An aggregate function is a function that runs in the context of a window of events, emitting results intermittently
  • Tilt Frames - A tilt frame is a chain of compatible windows with decreasing resolution used to reduce memory pressure and preserve relative accuracy of windowed aggregate functions

An example clock-driven tumbling window:

use std::time::nanos;

define window `15secs` from tumbling
with
interval = nanos::from_seconds(15),
end;

select {
"count": aggr::stats::count(), # Aggregate 'count' function
"min": aggr::stats::min(event.value),
"max": aggr::stats::max(event.value),
"mean": aggr::stats::mean(event.value),
"stdev": aggr::stats::stdev(event.value),
"var": aggr::stats::var(event.value),
}
from in[`15secs`] # We apply the window nominally to streams or input ports
into out;

To use a window we need to define the window specifications, such as a 15 second clock-based tumbling window called 15secs as above. We can then create instances of these windows at runtime by applying those windows to streams. This is done in the from clause of a select statement.

Wherever windows are applied, aggregate functions can be used. In the above example, we are calculating the minimum, maximum, average, standard deviation and variance of a value numeric field in data streaming into the query via the standard input stream.

The query language is not constrained to clock-driven window definitions. Windows can also be data-driven or fully programmatic.

A more complete example:

select {
"measurement": event.measurement,
"tags": patch event.tags of insert "window" => window end,
"stats": aggr::stats::hdr(event.fields[group[2]], [ "0.5", "0.9", "0.99", "0.999" ]),
"class": group[2],
"timestamp": aggr::win::first(event.timestamp),
}
from in[`10secs`, `1min`, `10min`, `1h`]
where event.measurement == "udp_lb_test"
or event.measurement == "kafka-proxy.endpoints"
or event.measurement == "burrow_group"
or event.measurement == "burrow_partition"
or event.measurement == "burrow_topic"
group by set(event.measurement, event.tags, each(record::keys(event.fields)))
into normalize;

In the above example we use a single aggregate function called aggr::stats::hdr which uses a high dynamic range or HDR Histogram to compute quantile estimates and basic statistics against a number of dynamic grouping fields set by the group clause. A group clause effectively partitions our operation by the group expressions provided by the trickle query programmer. In the example, we're using the field names of the nested 'fields' record on inbound events to compose a component of a group that is also qualified by tags and a measurement name. The field component is used as a numeric input to the histogram aggregate function.

In the from clause, we are using a tilt frame, or a succession of window resolutions over which this aggregate function is producing results. So a 10secs window is emitting on a 10-second repeating basis into a 1min frame. So 6 times per second the state of the 10 second window is merged into the 1min frame. This merge process is performed for each frame in the tilt frame.

The advantage of tilt-frames is that as the target expression is the same for each frame, we can merge across each frame without amplifying error - in short, we get the effect of summarisation without loss of accuracy.

Windowing

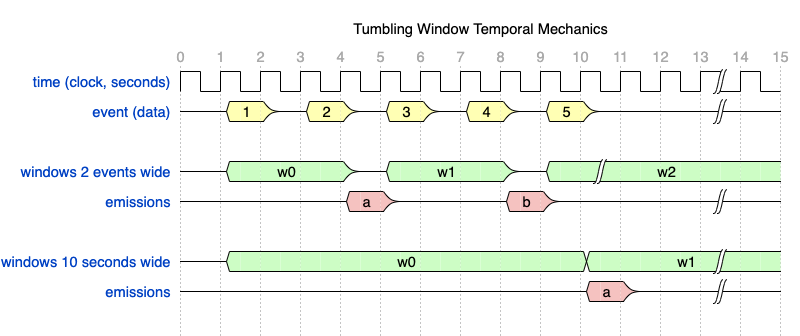

Assuming a periodic event delivered every 2 seconds into tremor.


A size based window of size 2 would emit a synthetic output event every 2 events. So the lifespan of a size based window is 2 events, repeated and non-overlapping for tumbling style windows. In the illustration above events 1 and 2 in the first window w0 produce a single synthetic or derivate event a Events 3 and 4 in the second window w1 produce a single synthetic or derivate event b As there is no 6th event in the example illustration, we will never get another synthetic output event

Contrast this with the 10 second or clock-based tumbling window. In the first window w0s lifetime we capture all events in the illustration.

Tilt Frames

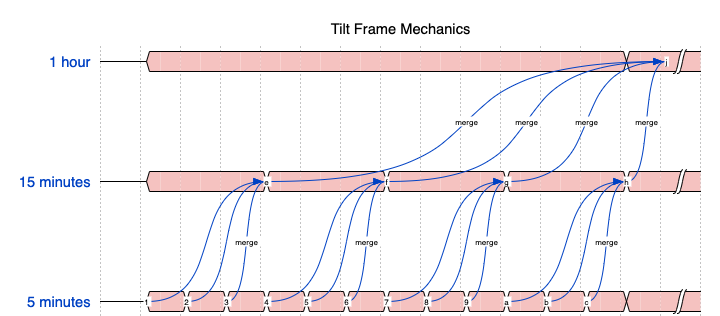

Assuming a continuous flow of events into tremor...


All the synthetic outputs of successive 5 minute windows that fit into a 15 minute interval are merged into the 15 minute window. All the outputs of successive 15 minute intervals that fit into a 1 hour interval are merged into the 1 hour window. By chaining and merging, tremor can optimise ( reduce ) the amount of memory required across the chain when compared to multiple independent windows select expressions. In the case of aggregate functions like aggr::stats::hdr or aggr::stats::dds the savings are significant.

If we imagine 1M events per second, that is 300M events every 5 minutes. 900M every 15, 3.6B every hour.

By using tilt frames we can maximally minimize internal memory consumption, whilst reducing the volume of incremental computation ( per event, per frame ), and further whilst preserving relative accuracy for merge-capable aggregate functions.

The converged statistics under merge exhibit the same relative accuracy at a fraction of the computational and memory overhead without the using the tilt-frame mechanism.
