CNCF OpenTelemetry Zipkin Interworking


All the application code here is available from the docs git repository.

This example builds on the passthrough CNCF OpenTelemetry configuration but configures Zipkin as a receiver and exporter in the OpenTelemetry Collector.

It shows how legacy observability frameworks such as Zipkin can be ingested into OpenTelemetry based services directly, or via the OpenTelemetry collector into tremor for specialized processing.

  • Zipkin service
  • CNCF OpenTelemetry Collector service
  • CNCF OpenTelemetry Onramp deployed into tremor
  • Deployment configuration file

External open telemetry clients can use port 4316 to send OpenTelemetry logs, traces and metrics through tremor. Tremor prints the json mapping to standard out and forwards the events to the OpenTelemetry collector.


The onramp we use is the otel CNCF OpenTelemetry onramp listening on a non-standard CNCF OpenTelemetry port 4316, it receives protocol buffer messages over gRPC on this port. The log, metric and trace events received are converted to tremor's value system and passed through a passthrough pipeline to the CNCF OpenTelemetry sink. The sink will try to connect to a downstream CNCF OpenTelemetry endpoint. In this workshop we will use the well known OpenTelemetry port of 4317 for our sink and run the standard OpenTelemetry collector on this port using its a collector configuration.

- id: otlp
type: otel # Use the OpenTelemetry gRPC listener source
codec: json # Json is the only supported value
port: 4316 # The TCP port to listen on
host: "" # The IP address to bind on ( all interfaces in this case )

It connects to a passthrough pipeline. This pipeline forwards any received observability events downstream unchanged.

select event from in into out;

We connect the passthrough output events into a standard output sink. The binding expresses these relations and gives deployment connectivity graph.

- id: example
- '/pipeline/example/{instance}/in'
- '/offramp/stdout/{instance}/in'

Finally the mapping instanciates the binding with the given name and instance variable to activate the elements of the binding.

instance: "passthrough"

Business Logic

select event from in into out

Command line testing during logic development

Use any compliant OpenTelemetry instrumented application and configure the server to our source on port 4316 instead of the default 4317.


For convenience, use the provided docker-compose.yaml to start and stop tremor and the opentelemetry collector as follows:

# Start
$ docker compose up

# Stop
$ docker compose down

Zipkin client

We use an existing Zipkin client for demonstration purposes. Fetch the standard zipkin php client as follows:

# Clone the git repo
$ git clone
# Cd into the repo root
$ cd zipkin-php-example
# Install dependent php libraries
$ composer install

And, assuming you have PHP composer, run the front and backend in two separate terminal windows:

# Spin up the PHP backend on `locahost:9000`
composer -run run-frontend
# Spin up the PHP frontend on `localhost:8081`
composer -run run-backend

Hit the frontend via curl ( in another terminal )

# Generate trace spand via curl
curl -o - http://locahost:8081/

Verify that our frontend has issued some spans in its terminal output

# Output from our frontend composer terminal
> php -S 'localhost:8081' frontend.php
[Tue Apr 6 18:53:56 2021] PHP 7.4.10 Development Server (http://localhost:8081) started
[Tue Apr 6 18:54:03 2021] [::1]:50812 Accepted
[Tue Apr 6 18:54:03 2021] [::1]:50812 Closing

Verify that our PHP backend has issued some spans in its terminal output

# Output from our backend composer terminal
> php -S 'localhost:9000' backend.php
[Tue Apr 6 18:50:34 2021] PHP 7.4.10 Development Server (http://localhost:9000) started
[Tue Apr 6 18:54:03 2021] [::1]:50813 Accepted
[Tue Apr 6 18:54:03 2021] [::1]:50813 Closing

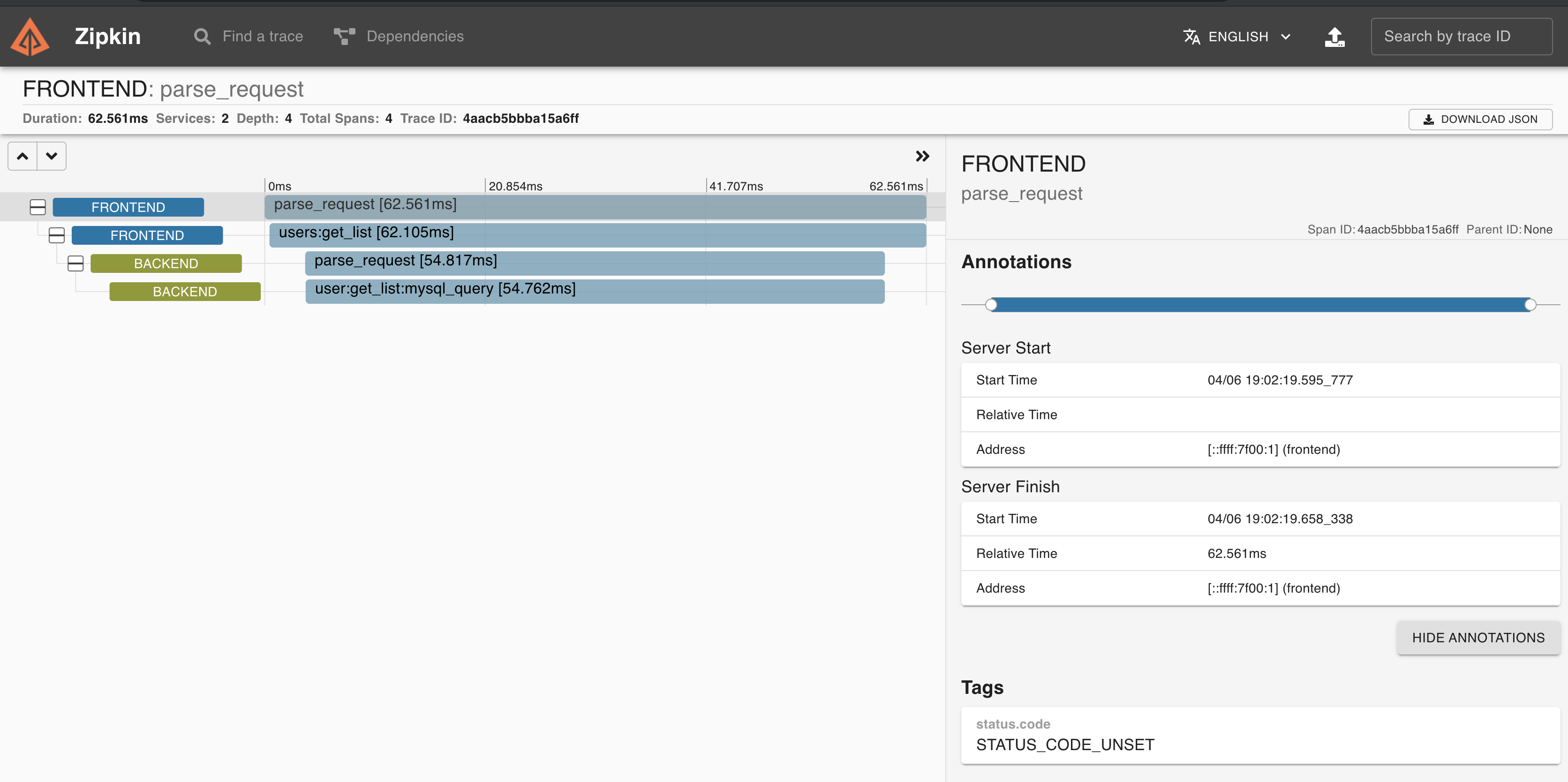

Verify our spans reached the Zipkin UI deployed in docker via pointing our browser to http://localhost:9412 by searching for traces:


Note that we expose the Zipkin UI on a non-standard port via docker so that our Zipkin traffic actually gets routed via the opentelemetry collector to tremor and to the Zipkin service and ui. In this way the opentelemetry collector and tremor.

From the perspective of the Zipkin PHP client - this is a plain vanilla Zipkin service. In practice, this is the opentelemetry-collector which is forwarding to both tremor and to the zipkin-ui in this demo.


Rather than run multiple sidecars, tremor could be configured to transform Zipkin traffic directly to the OpenTelemetry format. Given transformation logic as follows

### Transform zipkin b3 ( http/json ) to otel

use cncf::otel;
use tremor::system;
use std::record;

fn transform_span(span) with

# A transient event counter
let count = match state of
case null => let state = 0
default => let state = state + 1

match span of
case %{
present id, # span id
# present parentId, # span parent id
present traceId, # trace id
present annotations,
present name, # name
#present kind, # CLIENT
# present remoteEndpoint,
present timestamp,
present tags,
present duration,
present localEndpoint,
} =>
"resource": {
"attributes": merge span.tags of
{ "tremor.ingest_ns": system::ingest_ns() }
"dropped_attributes_count": 0,
"instrumentation_library_spans": [
"instrumentation_library": {
"name": "tremor",
"version": system::version(),
"spans": [
"start_time_unix_nano": (span.timestamp * 1000),
"end_time_unix_nano": (span.timestamp * 1000) + (span.duration * 1000),
"name": "#{} - #{count}",
"attributes": record::from_array(for span.annotations of
case(i,e) => [ "zipkin.annotation.#{e.value}", e.timestamp * 1000 ] # convert ts micros -> nanos
"dropped_attributes_count": 0,
"kind": match span of
case %{ present kind } =>
match span.kind of
case "CLIENT" => otel::trace::spankind::client
case "SERVER" => otel::trace::spankind::server
case "PRODUCER" => otel::trace::spankind::server
case "CONSUMER" => otel::trace::spankind::server
default => otel::trace::spankind::client
default => otel::trace::spankind::client
"trace_state": "",
"parent_span_id": match span of
case %{ present parentId, } => span.parentId
default => "" # no parent span
"trace_id": span.traceId,
"status": otel::trace::status::ok(),
"events": [],
"links": [],
"dropped_events_count": 0,
"dropped_links_count": 0,
default => { "drop": span }

And a tremor query as follows:

# Process zipkin b3 [span] to [otel resource span]
define script to_zipkin
use zipkin_to_otel;
for event.trace of
case (i,span) =>
merge zipkin_to_otel::transform_span(span) of
"resource": {
"attributes": {
"http.url.path": event.request.url.path,
"http.url.port": event.request.url.port,
"http.url.scheme": event.request.url.scheme,
"http.headers.user-agent": event.request.headers.user-agent[0],
"http.headers.b3": event.request.headers.b3[0],
"http.method": event.request.method,
create script to_zipkin;

# Push zipkin-b3/http [trace] into transformer capturing http request metadata
select { "request": $request, "trace": event } from in into to_zipkin;

# Wrap resource spans as a trace event compatible with tremor otel sink
select { "trace": event } from to_zipkin into out;

Removing the zipkin-all-in-one container from this walkthrough's docker-compose.yaml and removing the OpenTelemetry collector configuration and container should be sufficient to produce a basic working environment based solely on tremor, and the Zipkin PHP clients with minor adjustments to the script and query files above.

However, the CNCF OpenTelemetry Collector has excellent support for legacy observability frameworks and formats. Tremor does not. The Zipkin UI will be familiar to users who have experience of observability through the Zipkin project. Tremor does not have a UI at all. We provide the example to illustrate a more complete example of how tremor is typically configured in production environments and to illustrate how existing trace and span information can be adapted to CNCF OpenTelemetry using tremor's scripting and query language support.
